Rp77,000,000

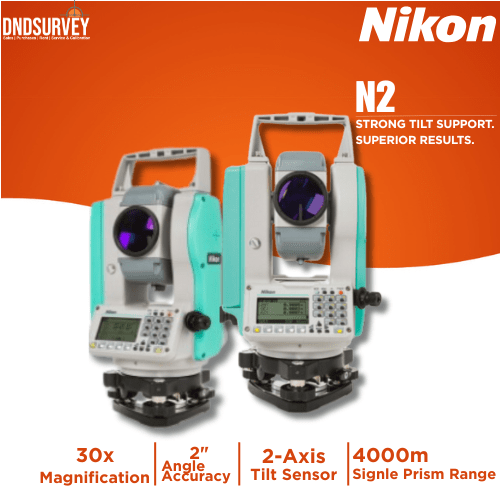

Total Station Nikon N2
Note:
*sertakan video unboxing untuk klaim garansi.
*apabila tidak terdapat video unboxing maka klaim garansi tidak berlaku.
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim.
*Barang di toko kami di jamin original dan baru.
Total Station Nikon N Series dirancang yang dapat memudahkan survei dengan cepat dan mudah.Anda dapat memilih opsi akurasi antara 2″ dan 5″ sesuai dengan yang anda butuhkan.
Total Station Nikon N2 sudah dilengkapi dengan Teknologi terkini dengan akurasi 2 detik dan jangkauan dalam mode prisma dengan jarak 13.000 kaki dan tanpa prisma dengan jarak 19.000.kaki.
Spesifikasi lebih lanjut mengenai Total Station Nikon N2 :
| DISTANCE MEASUREMENT | |
|---|---|
| Range with Nikon specified prisms | |
| With reflector sheet (5 × 5 cm) | : 1.5 m to 300 m (4.9 ft to 984 ft) |
| With single prism 6.25 cm (2.5 in) | : 4,000 m (13,123 ft) |
| KGC (18%) | |
| Good¹ | : 400 m (1312 ft) |
| Normal² | : 300 m (984 ft) |
| Difficult³ | : 235 m (771 ft) |
| KGC (90%) | |
| Good¹ | : 600 m (1968 ft) |
| Normal² | : 500 m (1640 ft) |
| Difficult³ | : 250 m (820 ft) |
| Accuracy4 | |
| Prism5 | : ±(2+2 ppm × D) mm |
| Reflector sheet | : ±(3+2 ppm × D) mm |
| Reflectorless6 | : ±(3+2 ppm × D) mm |
| Measuring interval7 | |
| Prism mode | |
| Precise mode | : 1.1 sec. |
| Normal mode | : 0.6 sec. |
| Fast mode | : 0.4 sec. |
| Reflectorless mode (Nikon N) | |
| Precise mode | : 1.1 sec. |
| Normal mode | : 0.6 sec. |
| Fast mode | : 0.4 sec. |
| Least count | |
| Precise mode | : 0.1 mm (0.0002 ft) |
| Normal mode | : 1 mm (0.002 ft) |
| ANGLE MEASUREMENT | |
| Accuracy8 (horizontal and vertical) | : 2“ (0.6 mgon), or 5“ (1.5 mgon) |
| Reading system | : Photoelectric detection by incremental encoder |
| Circle diameter | : 88 mm (3.46 in) |
| Horizontal angle | : 2”:Diametrical, 5”:Single |
| Vertical angle | : Single |
| Minimum increment | : 1/5/10” (0.2/1/2 mgon) |
| TELESCOPE | |
| Tube length | : 125 mm (4.9 in) |
| Image | : Erect |
| Magnification | : 30× (18x/36x with optional eyepieces) |
| Effective diameter of objective | : 45 mm (1.77in) |
| Field of view | : 1°20‘ |
| Resolving power | : 3” |
| Minimum focusing distance | : 1.5 m (4.9 ft) |
| Laser Pointer (Nikon N) | : Coaxial Red Light |
| COMMUNICATIONS | |
| Communication ports | : 1 x serial (RS-232C) |
| WIRELESS COMMUNICATIONS | |
| Bluetooth | : Integrated |
| GENERAL SPECIFICATIONS | |
| Level vials | |
| Sensitivity of Circular level vial | : 10‘/2 mm |
| Optical plummet | |
| Image | :Erect |
| Magnification | : 3X |
| Field of view | : 5° |
| Focusing range | : 0.5 m (1.6 ft) to ∞ |
| Display | |
| NIKON N2 2“ | : Both sides, backlit, graphic LCD (128 × 64 pixel) |
| NIKON N5 5“ | : Single side, backlit, graphic LCD (128 × 64 pixel) |
| Point memory | : 50,000 records |
| Dimensions (W x D x H) | :168 mm x 173 mm x 335 mm (6.6 in x 6.8 in x 13.1 in) |
| Weight (approx.) | |
| Main unit (without battery) | : 4.9 kg (10.8 lb) |
| Battery | : 0.1 kg (0.2 lb) |
| Battery charger | : 0.05 kg (0.1 lb) |
| Carrying case | : 2.5 kg (5.5 lb) |
| Power | |
| Clip-on Li-on battery | : x1 incl. |
| Operating time9 (per battery) | |
| Continuous distance/angle measurement | : approx. 4.5 hours |
| Distance/angle measurement every 30 seconds | : approx. 14 hours |
| Continuous angle measurement | : approx. 22 hours |
| Charging time | |
| Full charge | : 6 hours |
| External power supply | : Yes |
Sudah lengkap dengan :
-Total Station Nikon N2
-Battery BC65
-Charger USB Type-C
-Prisma Single Target / AK
-Prisma Polygon / Ads
-Tripod Statif Alumunium
-Stik Pole Jalon Survey
Bergaransi 1 Tahun dan Free Kalibrasi Selama 12 Bulan
Free Training untuk daerah Bandung dan sekitarnya
Dapatkan sekarang juga hanya di DND Survey
Harap tanya ketersediaan stok terlebih dulu ya sebelum order:)
