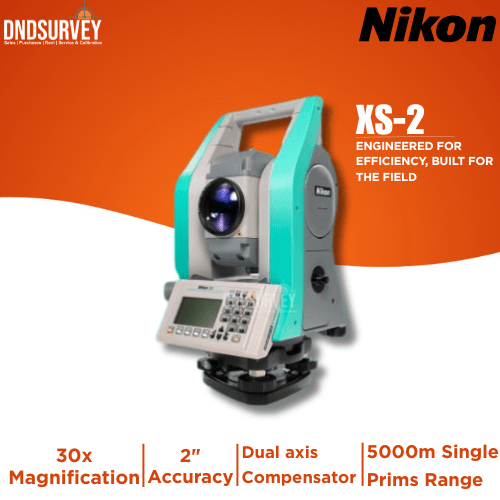

Total Station Nikon XS 2
+Original
+Garansi
+Lengkap Aksesoris Standart
Standard Aksesoris :
Total Station Nikon XS 2
2 x Aluminium Tripod
1 x Prisma Polygon
1 x Range Pole
1 x Single Prism
1 x Cable Data
1 x Software Data
Note:
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim.
*Barang di toko kami di jamin original dan baru
Dengan desainnya yang ringkas dan serta pengaturan yang mudah, Total Station NIKON XS ” membuat kerja survei cepat, efisien dan mudah. Perangkat lunak onboardnya memastikan alur kerja yang lancar dan efisien dari lapangan ke kantor. Saat Anda bekerja dengan Total Station NIKON XS “, Anda menyelesaikan pekerjaan dengan benar pada kali pertama. Tidak perlu kembali ke tempat kerja, berkat fitur yang meliputi:
Total Station NIKON XS ” adalah user-friendly dan tahan lama. Ini ringan dan mudah dibawa mengurangi kelelahan pengguna, memungkinkan untuk bekerja lama, bahkan saat menangani kondisi kerja yang sulit. Yang terpenting: sangat akurat dan didukung oleh jaminan kualitas Nikon. Anda bisa mengandalkannya untuk melakukan pengukuran yang tepat, proyek demi proyek, dari tahun ke tahun.
FITUR Total Station NIKON XS
Spesifikasi
| DISTANCE MEASUREMENT | TELESCOPE | ENVIRONMENTAL |
| • Range with specified prisms | • Tube length: 125 mm (4.9 in) | • Operating temperature range: |
| – Good conditions1 | • Image: Erect | –20 °C to +50 °C (–4 °F to +122 °F) |
| – With reflector sheet 5 cm x 5 cm | • Magnification: 30× (19x/38x with optional eyepieces) | • Storage temperature range: |
| (2 in x 2 in): 1.5 m to 300 m | • Effective diameter of objective: 45 mm (1.77in) | –25 °C to +60 °C (–22 °F to +140 °F) |
| (4.9 ft to 984 ft) | – EDM Diameter: 50 mm (1.97 in) | • Atmospheric correction |
| – With single prism 6.25 cm (2.5 in): | • Field of view: 1°25’ | – Temperature range: |
| 1.5 m to 5000 m (4.9 ft to 16404 ft) | • Resolving power: 3“ | –40 °C to +60 °C (–40 °F to +140 °F) |
| • Non-Prism mode | • Minimum focusing distance: 1.5 m (4.9 ft) | – Barometric pressure: |
| – KGC (18%) | TILT SENSOR | 400 mmHg to 999 mmHg/533 hPa to 1,332 hPa/15.8 inHg |
| – Good1: 400m (1312ft) | • Type: Dual axis | to 39.3 inHg |
| – Normal2: 300m (984ft) | • Method: Liquid-electric detection | • Dust and water protection: IP66 |
| – Difficult3: 235m (770ft) | • Compensation range: ±3‘ | CERTIFICATION |
| – KGC (90%) | COMMUNICATIONS | • Class B Part 15 FCC certification, CE Mark approval. RCM Mark. |
| – Good1: 800 m (2625 ft) | • Communication ports: | • IEC60825-1 am 2007, IEC60825-1 am 2014, FDA notice 50 |
| – Normal2: 500 m (1640 ft) | 1 x serial (RS-232C), 1 x USB (host) | • Prism/Non-Prism mode: Class 1 laser |
| – Difficult3: 250 m (820 ft) | • Wireless Communications: | • Laser Plummet/Laser Pointer: Class 2 laser |
| • Accuracy in precise mode7 | Integrated Bluetooth | 1. Good conditions (good visibility, overcast, twilight, low ambient light). |
| – Prism6: ±(2+2 ppm × D) mm | POWER | 2. Normal conditions (normal visibility, object in the shadow, moderateambient light). |
| – Non-Prism: ±(3+2 ppm x D) mm | • Internal Li–ion battery (x2) | 3. Difficult conditions (haze, object in direct sunlight, high ambient light). |
| • Measuring interval4 | – Output voltage: 3.6V | 4. Measuring time may vary depending on measuring distance and conditions.Specification based on average of repeated measurements. |
| – Prism mode | • Operating time | 5. Battery life specification at 25 °C (77 °F). Operation times may vary depending on the condition and deterioration of the battery. |
| – Precise mode: 1.0 sec. | – Continuous angle-only measurement: 22 h | 6. Standard Deviation based on ISO 17123-4 |
| – Normal mode: 0.5 sec. | – Distance/ angle measurement/AF every 30 s: 18 h | 7. For both prism and non-prism modes, EDM accuracy in normal mode is ±(10+5ppm × D) mm and fast mode is ±(20+5 ppm × D) mm. |
| – Fast mode: 0.3 sec. | – Continuous distance/angle measurement: 10 h | Bluetooth type approvals are country specific. |
| – Non-Prism mode | • Charging time | Specifications subject to change without notice. |
| – Precise mode: 1.0 sec. | – Full charge: 6 h | |
| – Normal mode: 0.5 sec. | GENERAL SPECIFICATIONS | |
| – Fast mode: 0.3 sec. | • Autofocus: Yes | |
| – Least count | • Tangent Clamps: Yes | |
| – Precise mode: 0.1 mm (0.003 ft) | • Level vials | |
| – Normal mode: 10mm (0.03ft) | – Sensitivity of Circular level vial on tribrach: | |
| – Fast mode: 10mm (0.03ft) | 10‘/2 mm | |
| ANGLE MEASUREMENT | • Display face 1: back-lit, graphic LCD (128 x 64 pixels) | |
| • Accuracy | • Display face 2: back-lit, graphic LCD (128 x 64 pixels) | |
| – (Standard Deviation based on ISO 17123-3): | • Point memory: 50,000 points | |
| 1“, 2“, 3“, 5“ | • Internal Plummet: Optical or Class 2 Laser | |
| • Reading system: Absolute encoder | – Optical Plummet: | |
| • Circle diameter: 62 mm (2.4 in) | – Magnification: 3x | |
| • Horizontal/Vertical angle: Diametrical / Single | – Field of view: 5° | |
| • Minimum increment (Degree, Gon): | – Minimum focusing distance: 0.5m | |
| – Degree: 1“ (XS 1“: 0.5“); Gon: 0.1 mgon | • Dimensions (W x D x H): 206 mm x 169 mm x 318 mm | |
| (8.1 in x 6.7 in x 12.5 in) | ||
| • Weight (approx.) | ||
| – Main unit: 4.3 kg (9.5 lb) | ||
| – Battery: 0.1 kg (0.2 lb) | ||
| – Carrying case: 3.3 kg (7.3 lb) |
