Total Station Robotic Sokkia IX-505

Note:
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim.
*Barang di toko kami di jamin original dan baru

Description

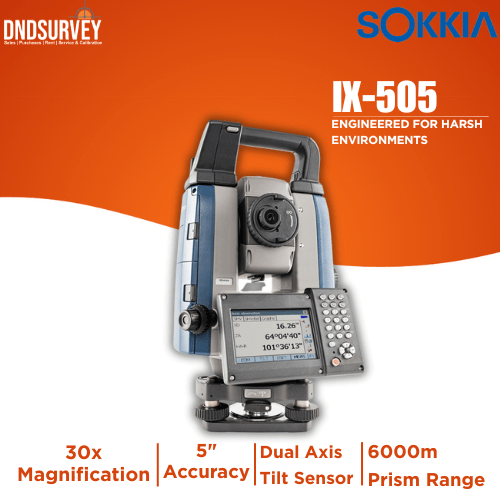

Total Station Robotic Sokkia IX-505

The iX Series robotic total stations are a trimmed down, high- performance solution. You get the efficiency of a single-operator robotic system, the power of long range reflectorless measurements, and performance as a hybrid positioning solution.
Ultra-powerful
UltraSonic technology is the driving force for the iX Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism- tracking possible. It’s a difference you can see and hear immediately. With a rotation speed of 150° per-second, no matter how fast you move, or how many obstacles are in the way, you cannot outrun the iX.
Ultra-accurate
Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line-of-sight, it’s how fast you can reacquire and get back to work.
Ultra-slim and reliable
Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Without traditional gears or wearing parts, the UltraSonic motors are much more rugged and durable – lasting four times longer than previous total stations, and we back it with a five year warranty.



Telescope
Resolving power 2.5″
Magnification 30x
Angle Measurement
iX-502 2″
iX-503 3″
iX-505 5″
iX-1001 1″
iX-1003 3″
iX-1005 5″
Tilt Angle Compensation
Compensation Liquid 2-axis tilt sensor
Range ±6’
Distance Measurement
Prism EDM Range
iX-500
iX-1000
4,000 m
6,000 m
Non-Prism Range
iX-500
iX-1000
600 m
800 m
Non-Prism Accuracy 2+2 ppm
Prism Accuracy
iX-500
iX-1000
2+2 ppm
1+2 ppm
Prism Accuracy
iX-500
iX-1000
Fine: 0.9 sec
Rapid: 0.6 sec
Tracking: 0.4 sec

Full specifications in brochure.
