Description
High Quality, High Return!
- Perangkat Lunak Aplikasi Konstruksi dan Survei
- Fitur Jarak Pengukuran Cepat & Akurat & Kuat
- Pengukuran Reflektoress Jarak Jauh 500m
- Desain Kasar & Tahan Air
- Memori Internal Volume Besar Yang Andal

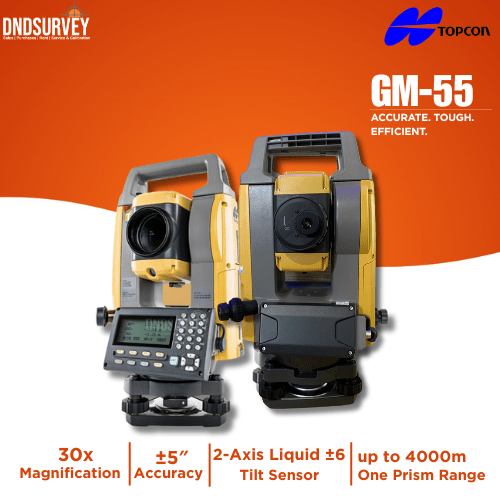

Total Station Topcon GM 55 EDM Tanpa Reflektor yang Cepat dan Kuat
- Penentuan posisi yang cepat dan akurat dengan teknologi pergeseran fase.
- Pengukuran jarak cepat 0,9 detik terlepas dari objek
- Jarak pengukuran tanpa reflektor minimum – hanya 30 cm.
- Peningkatan collimation dengan pointer super terang.
- Ukuran titik balok EDM yang lebih kecil untuk kesalahan
pengukuran jarak minimal Total Station Topcon GM 55.
- Pengukuran yang dapat diandalkan bahkan pada sudut insiden yang dangkal.
- Memastikan pengukuran jarak lembar reflektif yang akurat
Spesifikasi Total Station Topcon GM 55
Model |
GM-52 |
GM-55 |
Telescope |
|
|
Magnification / Resolving power |
30 x / 2.5″ |
|
Others |
Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels |
|
Angle measurement |
|
|
Minimum Display |
1 ”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil ) |
|
Accuracy (ISO 17123-3:2001) |
2″ |
5 “ |
Dual-axis compensator / |
Dual-axis liquid tilt sensor, working range: ±6′ |
|
Collimation compensation |
On/Off (selectable) |
|
Distance measurement |
|
|
Laser output*1 |
Reflectorless mode : Class 3R / Prism/sheet mode : Class 1 |
|
Measuring range(under average conditions*2) |
Reflectorless*3 |
0.3 to 500m (1,640ft. ) |
|
Reflective sheet*4*5 |
RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), |
|
|
RS50N-K: 1.3 to 300m (4.3 to 980ft.), |
|
|
RS10N-K: 1.3 to 100m (4.3 to 320ft.) |
|
Mini prism |
1.3 to 500m (4.3 to 1,640ft. ) |
|
One prism |
1.3 to 4,000m (4.3 to 13,320ft) |
Minimum Display |
|
Fine / Coarse : 0.0001m (0.001ft. / 1/8 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) |
|
|
Coarse : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1 in.) (selectable) |
|
|
Tracking / Road : 0.01m (0.02ft. / 1 in.) |
Accuracy*2 |
Reflectorless*3 |
(2 + 2ppm x D) mm*6 |
(ISO 17123-4:2001) |
Reflective sheet*4*5 |
(2 + 2ppm x D) mm |
(D=measuring distance in mm) |
Prism*7 |
(1.5 + 2ppm x D) mm |
Measuring time*8 |
Fine |
0.9 s (initial 1.5s ) |
|
Coarse |
0.6 s (initial 1.3s ) |
|
Tracking |
0.4 s (initial 1.3s ) |
OS, Interface and Data management |
|
|
Operating system |
|
Linux |
Display / Keyboard |
|
Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / |
|
|
Alphanumeric keyboard / 28 keys with backlight |
Control panel location |
On both faces |
On single face |
Data storage |
Internal memory |
Approx. 50,000 points |
|
Plug-in memory device |
USB flash memory (max. 32GB) |
Interface |
|
Serial RS-232C, USB2.0 (Type A for USB flash memory) |
General |
|
|
Laser-pointer |
|
Coaxial red laser using EDM beam |
Levels |
Graphic |
6 ’ (Inner Circle ) |
|
Circular level (on tribrach) |
10 ‘ / 2mm |
Plummet |
Optical |
Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom |
|
Laser (option) |
Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product |
Dust and water protection / Operating temperature |
|
IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF) |
Size with handle |
183(W)x 181(D)x 348(H)mm |
183(W) x 174(D)x 348(H)mm |
|
(On both faces) |
( On single face ) |
Instrument height |
|
192.5 mm from tribrach mounting surface |
Weight with battery & tribrach |
|
Approx. 5.1kg (11.3lb) |
Power supply |
|
|
|
Battery |
Li-ion rechargeable battery BDC46 |
|
Operating time (20ºC)*9 |
Approx. 14hours*10 |
Application program |
|
|
On board |
|
•REM Measurement •3D Coordinate Measurement •Resection •Stake Out •Topography Observation•Offset Measurement •Missing Line Measurement •Surface Area Calculation •Route Surveying |
*1 IEC60825-1:Ed.3.0:2014/ FDA CDRH 21CFR Part1040.10 AND1040.11 *2 Average conditions: Slight haze, visibility about 20km (12 miles), sunny periods, weak scintillation. *3 With Kodak Gray Card White Side (90% reflective). When brightness on measured surface is 30,000 lx. or less. Reflectorless range/accuracy may vary according to measuring objects,observation situations and environmental conditions. *4 When the measuring beam’s incidence angle is within 30º in relation to the reflective sheet target. *5 Measuring range in temperatures of 50 to 60°C (122 to 140°F): RS90N-K: 1.3 to 300m (4.3 to 980ft.), RS50N-K: 1.3 to 180m (4.3 to 590ft.), RS10N-K: 1.3 to 60m (4.3 to 190ft.) *6 Measuring range:0.3 to 200m *7 Face the prism toward the instrument during the measurement with the distance at 10 m or less. *8 Good conditions: No haze, visibility about 40km (25miles), overcast, no scintillation. *9 Figures will change depensing on the operating environment including temperatures and observation conditions. *10 In use of ECO mode. Fine single measurement every 30sec.
