Rp179,000,000

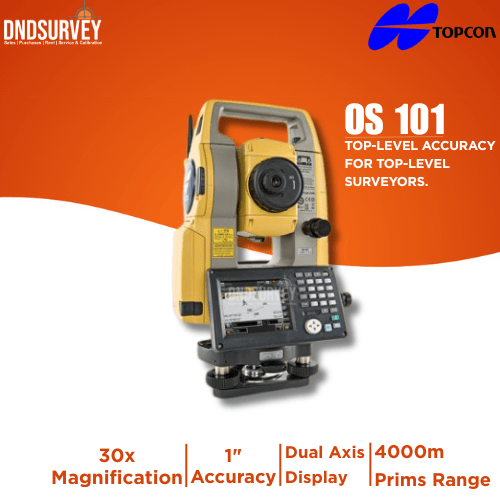

Total Station Topcon OS 101
+Original
+Garansi
+Lengkap Aksesoris Standart
Standard Aksesoris :
Total Station Topcon OS 101
2 x Aluminium Tripod
1 x Prisma Polygon
1 x Range Pole
1 x Single Prism
1 x Cable Data
1 x Software Data
Note:
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim.
*Barang di toko kami di jamin original dan baru
On-board Total Stations
Desain canggih. Teknologi unggul
Total Station OS Series adalah total station kelas profesional. Desain canggih ini menyediakan antarmuka pengumpulan data terpasang, komunikasi LongLink ™ eksklusif, dan EDM yang sangat kuat.
Bekerja langsung pada layar sentuh yang cerah, berwarna, atau dengan keyboard alfanumerik, untuk mencapai tingkat produksi yang lebih tinggi dengan perangkat lunak on-board MAGNET Field. Total Station OS Series dapat digunakan pada berbagai aplikasi, mulai dari tata letak bangunan hingga volume pekerjaan tanah, dan survey tanah.
On-board Windows® touchscreen
Menjalankan perangkat lunak terpasang di komputer layar sentuh Windows® meningkatkan produktivitas. Layarnya besar dan cerah, sehingga pengguna dapat melihat lebih banyak fungsi perangkat lunak dan berinteraksi secara intuitif dengan layar di mana diperlukan. Aplikasi perangkat lunak menjadi lebih mudah digunakan dan tidak perlu memegang pengontrol lapangan di satu tangan saat memutar instrumen dengan yang lain. OS memiliki kunci singgung yang akurat untuk menjaga posisi sudut akurat bahkan dengan interaksi layar sentuh dan keyboard.
Proyek bergerak lebih cepat dengan mampu melakukan pengumpulan poin, entri deskripsi, dan perhitungan di layar. Layar penuh warna yang cerah memberikan resolusi yang cukup untuk melihat titik, garis, dan ikon, untuk membantu Anda mengambil keputusan lebih cepat. Semua data Anda disimpan di satu tempat, aman di kapal.
Exclusive LongLink™
Untuk Stakeout dan operasi lain di mana berada di kutub prisma dengan pengontrol lapangan sangat penting, fungsi LongLink ™ eksklusif Topcon memungkinkan Anda untuk mengoperasikan pengontrol lapangan lebih dari 300 m dari
instrumen. LongLink ™ memberi Anda fleksibilitas yang belum pernah Anda miliki sebelumnya.
Easy access USB 2.0 memory
Ultra-powerful, advanced EDM
Advanced angle encoder system
EDM trigger key
Spesifikasi
| Model | OS – 101 | |
| Telescope | ||
| Magnification / Resolving power | 30x / 2.5″ | |
| Others Length | 171mm (6.7in.), Objective aper ture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3f t.)Reticle illumination: 5 brightness levels | |
| Angle measurement | ||
| Minimum Display | 0,5 ”/1” (0.0001 / 0.0002gon,0.002 / 0.005mil) | |
| Accuracy (ISO 17123-3:2001) | 1″ | |
| Dual-axis compensator / Collimation compensation | Dual-axis liquid tilt sensor, working range: ±6′( ±111 mgon)/Collimation compensation | |
| Distance measurement | ||
| Laser output *1 | Reflectorless mode : Class 3R / Prism/sheet mode : Class 1 | |
| Measuring range (under average conditions) *2 | Reflectorless *3 | 0.3 to 500m (1,0 to 1,640 ft) |
| Reflective sheet *4*5 | RS90N-K: 1.3 to 500m (4.3 to 1,640f t.),RS50N-K: 1.3 to 300m (4.3 to 980f t.),RS10N-K: 1.3 to 100m (4.3 to 320f t.) | |
| Mini prism | 1.3 to 500m (4.3 to 1,640f t.) | |
| One prism | 1.3 to 4,000m (4.3 to 13,320f t)/under goods condition : 1.3 to 5,000m (16,400 ft) | |
| Three prism | to 5,000m (16,400 ft) /under goods condition to 6,000m (19,680 ft) | |
| Display Resulation | Fine/Rapid : 0.001m (0.01f t. / 1/8in.) / 0.001m (0.01f t. /0,1 ft/1/2in.)Coarse : 0.001m (0.005f t. / 1/8 in.) / 0.01m (0.02f t. / 1 in.) | |
| Accuracy *2 | Reflectorless *3 | (3 + 2ppm x D) mm |
| (ISO 17123- 4:2001)(D=measuring distance in mm) | Reflective sheet *4 | (3 + 2ppm x D) mm |
| Prism *7 | (2 + 2ppm x D) mm | |
| Measuring time *8 | Fine | 0.9s (initial 1.7s) |
| Rapid | 0.7s (Initial 1.4s) | |
| Coarse | 0.6s (initial 1.3s) | |
| Tr ac k i ng | 0.3s (initial 1.4s) | |
| Operating system/Application | Microsoft windows ® CE 6.0/MAGNET field | |
| Display / Keyboard | 3.5 Inch, semi transmissiveTFT QVGA color LCD with LED backlight, Touch screen,Automatic brightness control/26 keys with backlight | |
| Control panel location *9 | On Both Face | |
| Trigger key | Serial RS-232C, USB2.0 (Type A /mini B) | |
| Data storage | Internal memory | 500 MB internal memory (includes memory for program files) |
| Plug-in memor y device | USB flash memory (max. 8GB) | |
| Inter face | Serial RS-232C, USB2.0 (Type A /mini B) | |
| Bluetooth modem (option)*10 | Bluetooth Class 1 Ver.2.1+EDR, Operating range up to 300m(980ft) | |
| General | ||
| Guide Light *12 | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490f t.) | |
| Laser-pointer *12 | Coaxial red laser using EDM beam | |
| Levels | Graphic | 6’ (Inner Circle) |
| Circular level (on tribrach) | 10′ / 2mm | |
| Plummet | Optical | Magnification: 3x Minimum focus: 0.5m (11.8in.) from tribrach bottom |
| Laser (option) | Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product | |
| Dust and water protection / Operating temperature *13 | IP65 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF) | |
| Size with handle *9 | W1+2 x D190 x H348mm(W7.5 x D7.5 x H13.7in) | |
| Weight with batter y & tribrach | Approx. 5.7kg (12.6lb) | |
| Power supply | ||
| Battery | BDC70 detachable battery | Li-ion rechargeable battery |
| Operating time (20ºC) *13 | BDC70 | Approx. 20 hours (singgle distance measurement every 30 seconds) |
| External battery *14 | BT-73Q approx.49 hours (singgle distance measurement every 30 seconds) | |
*1 IEC60825-1:Ed.3.0:2014/ FDA CDRH 21CFR Part1040.10 AND1040.11 *2 Average conditions: Slight haze, visibility about 20km (12 miles), sunny periods, weak scintillation. *3 With Kodak Gray Card White Side (90% reflective). When brightness on measured surface is 30,000 lx. or less. Reflectorless range/accuracy may vary according to measuring objects,observation situations and environmental conditions. *4 When the measuring beam’s incidence angle is within 30º in relation to the reflective sheet target *5 Measuring range in temperatures of -30 to -20oC (-22 to -4oF)with Low Temperature models and 50 to 60oC (122 to 144oF): RS90N-K:1.3 to 300m (4.3 to 980ft) RS50N-K:1.3 to 180m (4.3 to 590ft), RS10N-K:1.3 to 60m (4.3 to 190ft)*6 Good conditions: No haze, visibility about 40km *7 approval of Bluetooth wirelesstechnology varies according to country.Please consult your local office or representative in advance.*11 No obstacles, few vehicles or sourcesMeasuring range:0.3 to 200m *8 Typical under good condition.Reflectorless measurment time may vary according to measuring objects,observation situations and (25miles), overcast, no scintillation. environmental conditions. *9 Control panel location may vary defending on region or model *10 usage approval of Bloutooth wireless technology varies according to country please consult yout local office or representative in advance. *11 No obstacles,few vehicles or sources of radio emissions/interference in the near vicnity of the instrument,no rain *12 The laser-pointer and the guide light do not work simultaneosly.*13 Low temperature models :-30to 50oC (-22to 122oF) are available on built to order basis *14 For OS-101 OS 102 and Low Temperature models
| Weight | 35 kg |
|---|
